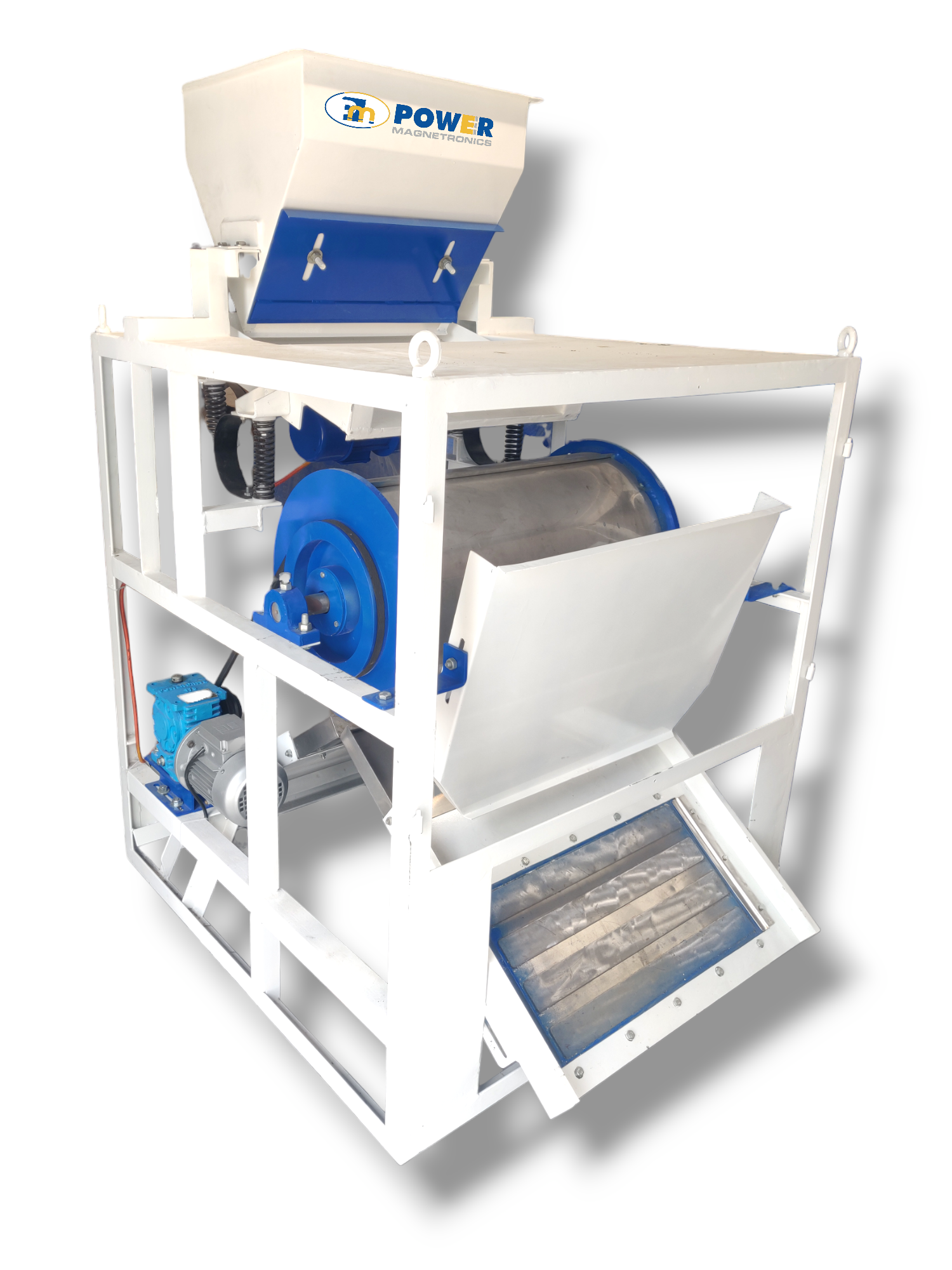

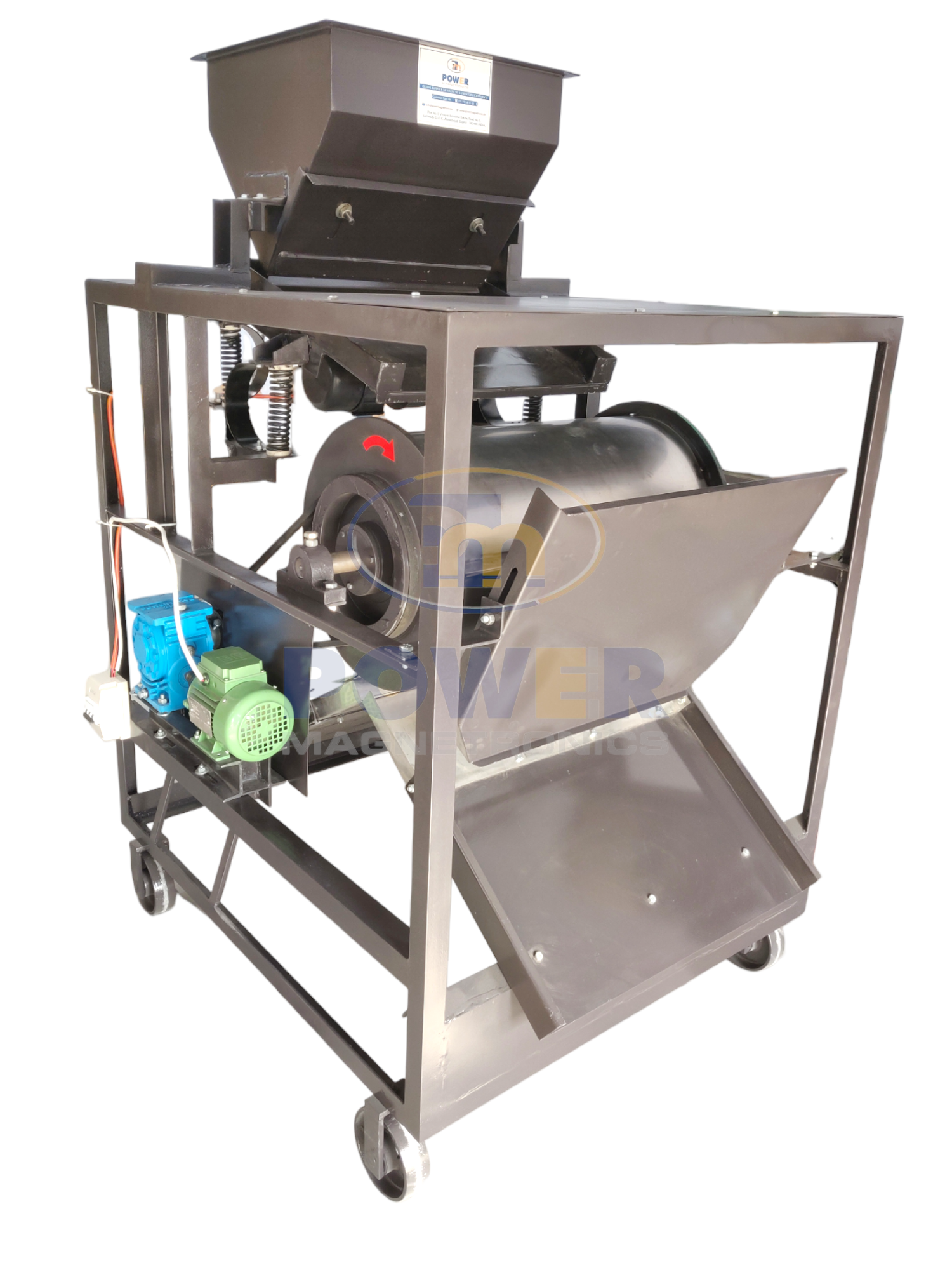

Power Magnetronics make drum type magnetic separators are designed for the continuous extraction of ferrous materials from a product being fed uniformly on to the face of the drum. As the material is fed onto the drum, ferrous materials are extracted and are firmly held to the drum face by the magnetic separator until they move away from the magnets influence and discharge, leaving any non-ferrous materials to free fall. Permanent Drums have a 180-degree stationary magnet system within a revolving cover. The magnet system is constructed using fully stabilized strontium ferrite permanent magnets. The magnets are mounted on to heavy-duty backplates, to optimize the magnetic strength directed at the product stream. This not only enhances the performance of the drum but also reduces the magnetic fields in the shaft and bearings, helping to extend their service life.
Power Magnetronics make Drum type magnetic separators are used in applications where there is a high feed of material to be processed and where there is a need to extract smaller ferrous particles from a given product stream. Drum type magnetic separators are of self-cleaning type and provide continuous removal of ferrous contamination from a wide range of free-flowing bulk and granular materials in high-volume applications. Rare earth drums are capable of extracting fine ferromagnetic and paramagnetic materials, which may not be extracted using a standard Permanent Drum. Rare earth dums are most often fitted into totally enclosed housings described in more detail below. Our magnetic separator range is available in a wide range of sizes to suit customers specific requirements.
- Single drum type magnetic separator
- Double drum type magnetic separator
- Triple drum type magnetic separator
- Require minimum space and easy to operate.
- Designed for continuous separation and self-cleaning.
- Ideal for high-flow, heavy-contamination applications.
- Maximum Recovery of Ferrous Metals
- Minimum Maintenance
- Flexible enough to be applied for various purposes.
- High Intensity – (Ndfeb Magnet – 5000 gauss)
- Medium Intensity – (Strontium Ferrite Magnet – 2500 gauss)
- Low Intensity – (Ferrite Magnet – 1500 gauss)
- Helps in removing ferrous particles from any non-ferrous powder and granules.
- Ideal for plastic, food, fertilizer, pharmaceutical, chemical, glass and continuous process plants.
- Provide utmost protection to crushers, grinders, pulverizes, and allied equipment.
- Can be used for mining and ore dressing industry.
- Eliminate fire hazards and explosions in plants dealing with explosive material.
- Save money, time and labour by reducing break-down time and improving quality.
- Chemical
- Ceramic
- Food
- Foundry
- Pharmaceutical
- Waste recycling
- Quartz purification
- Mining of Iron
- Plastics
- Fertilizers
- Rubber
- Refractories
