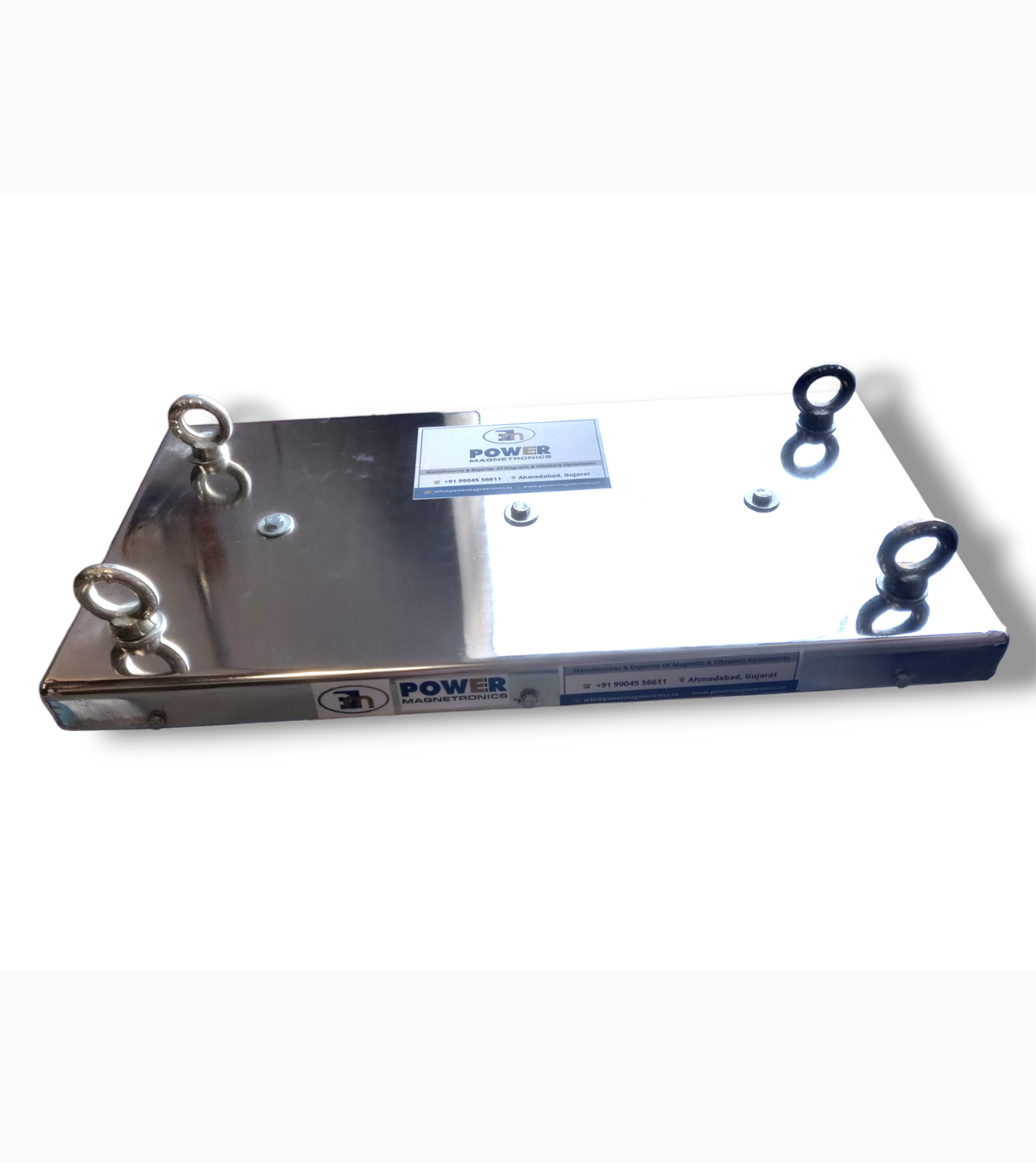

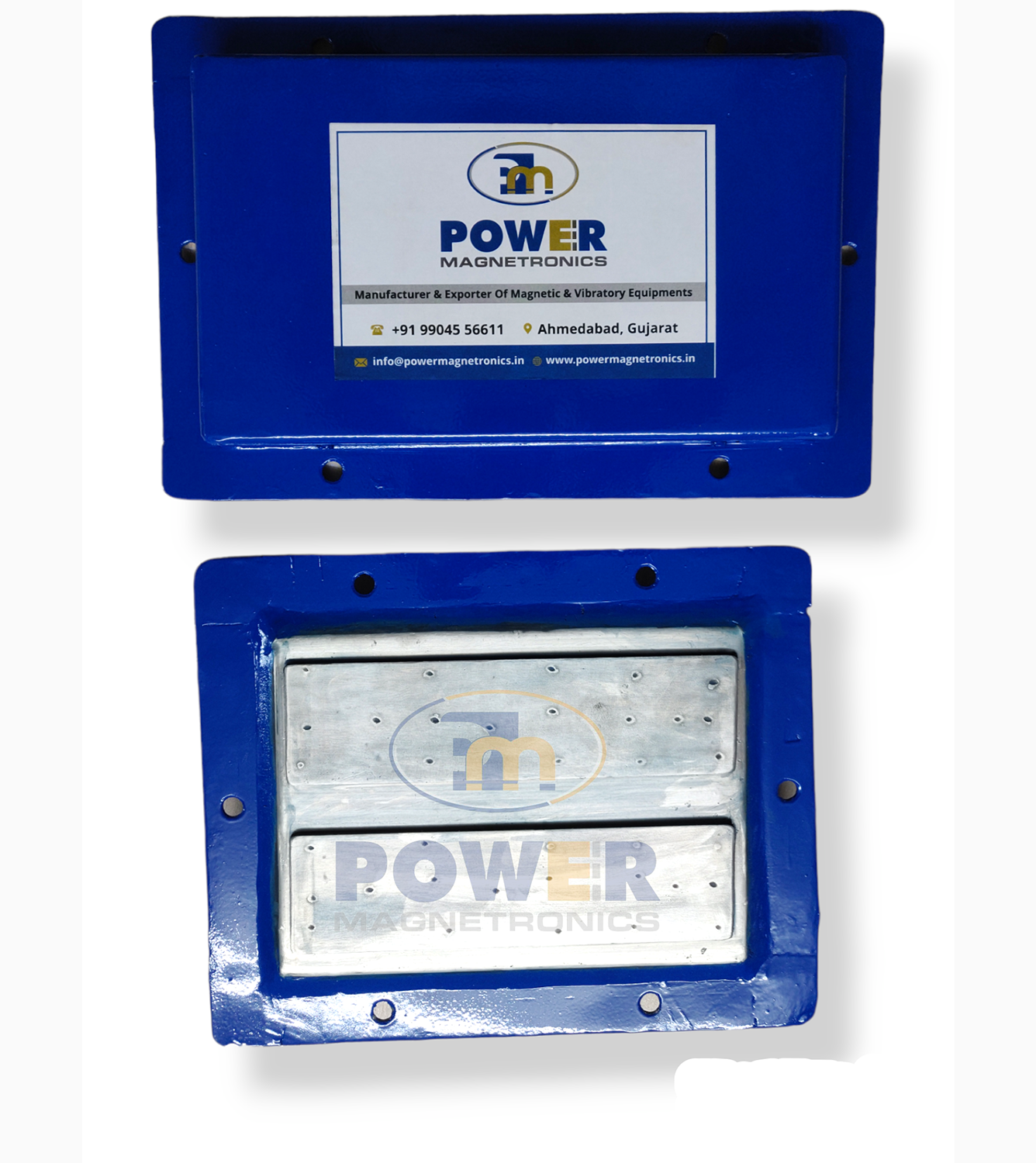

Power Magnetronics make plate magnets are an inexpensive form of magnetic protection against occasional tramp iron contamination. Plate magnets can be used in a wide range of industries and are commonly installed within a chute or over a conveyor. Plate magnet is constructed from stainless steel, which utilizes projected magnetic stainless steel poles for an enhanced field intensity. Stainless steel pole areas maximize the holding power of the magnets. Plate Magnets are designed to divert the product stream away from the magnet surface while allowing tramp metal to be magnetically attracted to the magnet’s surface behind the collection steps. Plate Magnets are easily installed and are supplied complete with sanitary hinges, latches, and mounting hardware. The hinged mounting design permits quick, easy cleaning of the magnet surface.
Plate Magnets can be manufactured with either a strontium ferrite or a high-intensity rare earth magnet system. The more powerful rare earth solution is advised for removing much finer iron particles from powders and foodstuffs. They are available in both flat and curved shapes and could be installed either above or along the passage of materials flow.
To extract metal from deeper burdens and increased throughput rates we can also provide a dual deep field separator. They are provided with clamps and could be located on the conveyor of carrying such materials ideally they are located 30 mm above the layer of material flow. All plate magnets are virtually maintenance-free, offering a long service life not affected by wet conditions.
Plate magnets are used for separation of tramp iron found in Tea, Tobacco, Coffee, Cocoa, Milk Powder, and Chemicals, etc. They are extensively used in CTC Tea machinery and in Biscuit stacking machines. They are available in various sizes as per the requirement.
- High surface strength.
- Rugged all-welded construction.
- 100% Stainless steel enclosed design.
- Cost-effective.
- Permanent magnet material – will not demagnetize.
- Low maintenance.
- Sanitary hinges and latches, included
- Food industries
- Minerals industries
- Pharmaceutical industries
- Chemical industries
- Fertilizer industries
